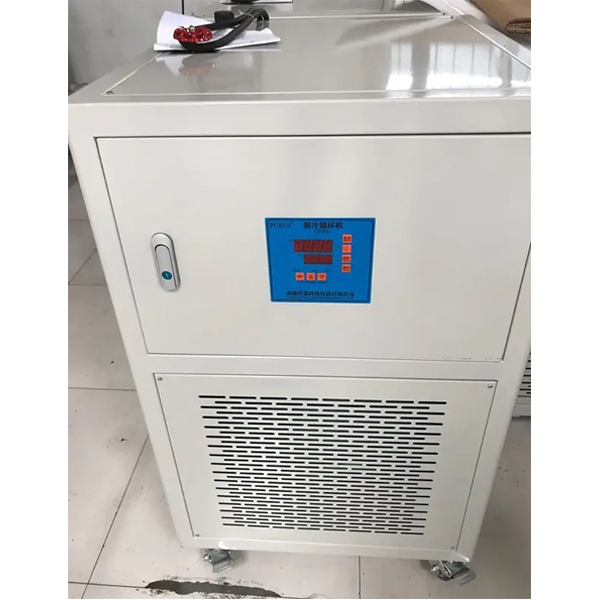

MLX Sealed Type Cooling Circulator
What is MLX Cooling Circulator？
The MLX Cooling Circulator is a cutting-edge cooling device used to achieve precise temperature control in a wide range of applications. It combines advanced cooling technologies with intelligent control systems to maintain consistent temperatures, ensuring optimal conditions for various processes. Whether it's pharmaceutical research, laboratory experiments, or industrial manufacturing, the MLX Cooling Circulator provides exceptional cooling performance and stability.
This cooling circulator includes several key components that work together to deliver efficient and reliable cooling capabilities. The primary components of the MLX Cooling Circulator are:
1. Cooling Unit: The cooling unit consists of a powerful compressor and refrigeration system that generates and circulates cold air or liquid to achieve the desired temperature.
2. Temperature Controller: The temperature controller is a sophisticated system that monitors and regulates the temperature within the circulator. It ensures precise temperature control, offering users the ability to set specific temperatures and maintain them accurately.
3. Pump: The circulator's integral pump circulates the cooling medium, facilitating consistent temperature distribution throughout the system. The pump's performance plays a vital role in achieving efficient cooling and maintaining temperature stability.
Quick Details
| Voltage | 220v |
| Weight | 90kg |
| Automatic Grade | Automatic |
Product Attribute
| Product Model | MXL-10 | MXL-20/30 | MXL-50 | MXL-100 | MXL-150 |
| Temperature Range(℃) | -25-Room Tem | -25-Room Tem | -25-Room Tem | -25-Room Tem | -25-Room Tem |
| Control Precision(℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Volume within Controlled Temperature(L) | 5.5 | 5.5 | 6.5 | 8 | 10 |
| Refrigerating Output | 2600-810 | 3500-1200 | 8600-4000 | 13kw-3.5kw | 15kw-4.5kw |
| Pump Flow(L/min) | 20 | 20 | 42 | 42 | 56 |
| Lift(m) | 45022 | 45022 | 28 | 28 | 38 |
| Dimension(mm) | 360×550×720 | 600×700×970 | 620×720×1000 | 650×750×1070 | 650×750×1360 |
| Supporting Volume(L) | 10 | 20/30 | 50 | 100 | 150 |
Applications of MLX Cooling Circulator
The versatility of the MLX Cooling Circulator makes it highly suitable for various industries and applications. Some prominent uses of the MLX Cooling Circulator are:
1. Pharmaceutical Industry: In pharmaceutical research and production, the MLX Cooling Circulator is crucial for maintaining stable temperatures during the synthesis of drugs, storage of sensitive materials, and quality control processes.
2. Laboratory Research: Scientists and researchers rely on the MLX Cooling Circulator to create the ideal temperature conditions for experiments, such as DNA analysis, protein crystallization, or culturing cells, ensuring accurate and replicable results.
3. Manufacturing Processes:
A. Electronics Industry: Electronics manufacturing often requires cooling components to optimize production processes or prevent overheating. The MLX Cooling Circulator offers precise cooling control, making it efficient for tasks like semiconductor manufacturing, PCB production, and testing electronic devices.
B. Chemical Industry: The MLX Cooling Circulator finds its application in chemical processes, such as temperature-controlled reactors, distillation systems, and temperature-sensitive materials handling. It enables stable temperature conditions, improving process efficiency and product quality.
Advantages of MLX Cooling Circulator
The MLX Cooling Circulator offers numerous advantages that make it a preferred choice over conventional cooling equipment. Some key benefits include:
1. Precise Temperature Control: The MLX Cooling Circulator provides accurate temperature control with high stability, ensuring optimal conditions for sensitive processes. This precision guarantees consistent results and avoids deviations caused by unsuitable temperature variations.
2. Energy Efficiency: By incorporating advanced technologies and intelligent control systems, the MLX Cooling Circulator optimizes energy consumption, making it a cost-effective cooling solution. Energy-saving features reduce electricity usage without compromising cooling performance.
3. Safety Features: The MLX Cooling Circulator prioritizes safety with features like overheating protection, automatic alarms, and system malfunctions detection. These safety mechanisms help prevent accidents and protect both equipment and users.
Choosing the Right MLX Cooling Circulator
Selecting the most suitable MLX Cooling Circulator for your specific needs requires careful consideration of various factors. The following aspects should be evaluated before making a decision:
1. Temperature Range: Determine the required temperature range of the circulator to ensure it covers the desired cooling spectrum effectively.
2. Cooling Capacity: Assess the cooling capacity needed for your application, considering factors such as sample size, heat load, and cooling time requirements.
3. Pump Performance: Evaluate the pump's flow rate and pressure capabilities to ensure it can handle the circulation demands of your system effectively.
4. Size and Portability: Consider the available space and the portability requirements of the cooling circulator. Compact designs or models with wheels might be preferable for easy handling and installation.
5. User Interface and Controls: Intuitive and user-friendly interfaces make operation more convenient. Look for circulators with clear control panels and easy-to-understand settings.
6. Maintenance and Support: Check for maintenance requirements and available customer support options. Understanding maintenance needs and having reliable support can ensure long-term usability and assistance when needed.
Installation and Operation of MLX Cooling Circulator
Installing and operating the MLX Cooling Circulator is a straightforward process. The following steps should be followed:
1. Installation Steps:
- Choose a suitable location for the cooling circulator that allows sufficient clearance for airflow and maintenance.
- Connect the cooling circulator to a power source using the provided power cable.
- Ensure the cooling circulator is correctly grounded for safety purposes.
- Connect the tubing or appropriate medium transfer mechanism according to the user manual.
- Power on the circulator by pressing the designated button or switch.
- Set the desired temperature according to your application requirements using the temperature controller.
- Monitor the temperature display regularly and make adjustments if necessary.
- Allow the cooling circulator to stabilize before starting your processes.
Maintenance and Troubleshooting
Proper maintenance of the MLX Cooling Circulator ensures optimal performance and longevity. Follow these maintenance tips to keep the circulator in excellent condition:
1. Regular Maintenance Tips:
- Regularly clean the cooling unit and remove any debris or dust that could restrict airflow.
- Clean or replace filters as advised by the manufacturer.
- Inspect and tighten any loose connections or fittings.
- Lubricate moving parts, such as pump mechanisms, as recommended.
- Keep the circulator's exterior clean and free from spills and chemical residues.
- Follow the manufacturer's guidelines for periodic maintenance tasks.
2. Troubleshooting Common Issues:
- If the circulator fails to start, check the power connection and ensure the power source is active.
- Verify that the temperature controller settings are correct and adjust as needed.
- Inspect the tubing for any leaks or blockages that may affect circulation.
- If errors or malfunctions persist, consult the user manual or contact customer support for assistance.
Best Practices for Optimal Performance
To maximize the MLX Cooling Circulator's performance, adhere to the following best practices:
1. Proper Usage Guidelines:
- Avoid overloading the circulator beyond its recommended capacity to prevent wear and damage to components.
- Maintain a steady power supply and avoid fluctuating voltages, as they can affect the circulator's performance.
- Ensure the cooling circulator's environment is free from excessive heat or other adverse conditions that may hinder its operation.
2. Safety Precautions:
- Always follow safety guidelines provided by the manufacturer.
- Wear appropriate personal protective equipment when handling the cooling circulator or its components.
- Do not tamper with or modify any safety features of the circulator.
- Disconnect the power supply before performing any maintenance tasks.
The MLX Cooling Circulator is a versatile cooling device that caters to the precise temperature control needs of various industries. Its advanced features, including precise temperature control, energy efficiency, and safety functions, make it an excellent choice for pharmaceutical research, laboratory experiments, and manufacturing processes. By selecting the appropriate MLX Cooling Circulator and adhering to best practices, users can optimize their cooling processes, improve efficiency, and achieve reliable results.
FAQs
1. Can MLX Cooling Circulator be used in medical research laboratories?
- Absolutely! The MLX Cooling Circulator is highly suitable for medical research laboratories due to its precise temperature control capabilities. It can maintain stable temperatures required for crucial experiments and provide optimal conditions for research purposes.
2. Is it possible to control the MLX Cooling Circulator remotely?
- Yes, certain models of the MLX Cooling Circulator offer remote control options. Through advanced connectivity features such as Wi-Fi or Ethernet, users can monitor and control the circulator remotely using dedicated software or mobile applications.
3. What is the typical lifespan of an MLX Cooling Circulator?
- The lifespan of an MLX Cooling Circulator can vary depending on usage, maintenance, and other factors. Generally, with proper care and regular maintenance, you can expect a cooling circulator to last for several years.
4. How does the MLX Cooling Circulator maintain temperature accuracy?
- The MLX Cooling Circulator utilizes sophisticated temperature control systems, including sensors, feedback mechanisms, and intelligent algorithms. These systems continuously monitor the temperature and adjust cooling mechanisms to maintain accuracy within the desired range.
5. Can the MLX Cooling Circulator operate in extreme climates?
- MLX Cooling Circulators are designed to withstand a range of operating conditions, but extreme climates can impact their performance. It's essential to consider the specific climatic requirements of the circulator and consult the manufacturer's guidelines for appropriate usage in extreme conditions.
